RIVETING
& CREASING MACHINE |
|
Ref.# P-4 |
|
|
New

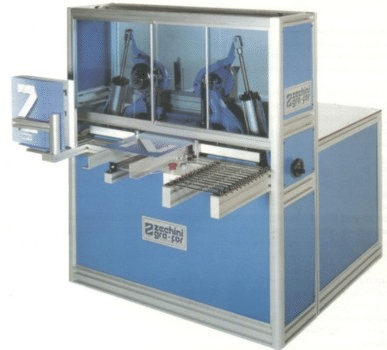

automatic creasing and riveting machine, in one
cycle it creases and applies the mechanism.
Particularly suitable for the production of
files, ring-binders and albums
ZECHINI-STRIKER
MODEL
The
machine is equipped with:
- Non
stop automatic feeder
- Completely
electronic size change
- Adjustable
creasing operation
- Automatic
mechanism introduction
- Max
speed 900/pc/hour
- Storage
of programs
|
|
ZECHINI-STRIKER
MODEL |
|
|
DESCRIPTION |
-
Max.
cover size: 19.685x27.559 in.
-
Min.
cover size: 11.693x8.268 in.
-
Creasing
thickness: adjustable
-
Rivetting
heads: n. 2
-
Max
creasings number: 999
-
Mechanism
introduction : semiautomatic
-
Min
creasings distance : 0.039 in.
-
Production/hour:
from 350 to 500 pieces
|
-
Tolerance
in the pass precision : 0.020 in.
-
Mechanism length (among rivets): min.
4.921 in – max. 18.504 in.
-
Max
mechanism height: 1.97 in.
Supply Voltage: 220/240 V/1 ph/50 Hz.
-
Dimensions:
66.929 x 57.087 x 62.992
in.
-
Net
weight 814 Lbs.
|
|
|
|
"DEMO"
|
|
Listed Price: $ 49,950.00
|
SALE PRICE:
$
42,995.00
|
|
REDUCED PRICE: $
39,950.00
|
|
|
|
CAN SEE
OPERATE!
|
|
