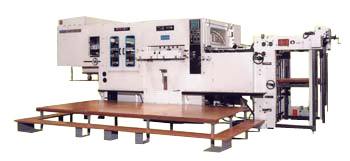

MW1050A
II
|
UNIT
|
|
Max.
Sheet Size
|
1050 x
750 (
41.3 x 29.5 )
|
mm
(in.)
|
|
Stock
Range
|
Paper: 0.1-1.5
Corrugated Board <=4mm
|
|
|
Max.
Die Cutting Size
|
1040 x 730
( 41 x 28.7 )
|
mm
(in.)
|
|
Max.
Pressure
|
320
|
t
|
|
Max.
Speed
|
7,500
|
sph
|
|
Feeder
Pile Height
|
1100-43.3
|
mm
(in.)
|
|
Delivery
Pile Height
|
850
-33.5
|
mm
(in.)
|
|
Main
Motor Power
|
11
|
kw
|
|
Total
Power
|
21
|
kva
|
|
Net
Weight
|
18000
- 39600
|
kg
(lbs)
|
|
Dimensions
|
7453 x
3680 x 2095 (25 x 12 x 7)
|
mm
(ft.)
|
Other available sizes: MW920 920x650mm (36”x26”)
MW780 780x540mm (31”x21”)
Options: Mabeg feeder
Stripping unit
Blanking unit
MW1050YA: New. Please call or email us to request additional information
|
|
