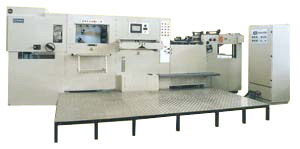

TYM1050
|
Units
|
|
Max.
Sheet Size
|
1050 x 750
( 41.4 x 29.5 )
|
mm(in.)
|
|
Min.
Sheet Size
|
450 x 370
( 17.7 x 14.6 )
|
mm(in.)
|
|
Max.
Stamping Size
|
1020 x 700
( 40.2 x 27.6 )
|
mm(in.)
|
|
Max.
Die Cutting Size
|
1040 x 730
( 40.9 x 28.7 )
|
mm(in.)
|
|
Stock Range
|
Paperboard
Min. 120 Corrugated Board <3
|
g/sq.m
mm
|
|
Heating
Capacity
|
12 heat zones
21 kw
|
|
|
Max.
Stamping Speed
|
5,000
|
sph
|
|
Max.
Die Cutting Speed
|
5,500
|
sph
|
|
Max.
Pressure
|
270
|
t
|
|
Foil Feed Devices
|
3 Longitudinal
700(27.6)
|
mm (in.)
|
|
Max. Diameter
of Foil Roll
|
180 ( 7 )
3" core
|
mm (in.)
|
|
Feeder Pile Height
|
1100
( 43.3 )
|
in.
|
|
Delivery
Pile Height
|
850 ( 33.5 )
|
in.
|
|
Capacity
of all motors
|
51
|
kw
|
|
Net
Weight
|
20,000 (
44,000 )
|
kg
(lbs)
|
|
Dimensions
|
6000x4640x2140
(20 x 15 x 7)
|
mm
(ft.)
|

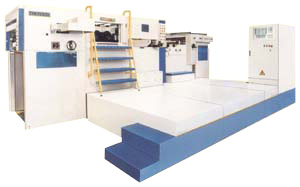

Features on TYM1050Y: High precision of film
positioning at high speed
Foil advance system
Die cut 7000 max Speeds
Foil 5500 max Speeds
Foil brackets removable to outside the machine for ease of
foil change
Large foil roll
Complete Siemens control system
Options: Mabeg feeder
Hologram unit
Elevation
Foil rewind unit
|
|
