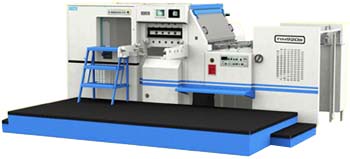

TYM920
|
Units
|
|
Max.
Sheet Size
|
920 x 650
( 36.2 x 25.6 )
|
mm(in.)
|
|
Min.
Sheet Size
|
520 x 440
( 20.5 x 17.3 )
|
mm(in.)
|
|
Max.
Stamping Size
|
900 x 600
( 35.4 x 23.6 )
|
mm(in.)
|
|
Max.
Die Cutting Size
|
920 x 640
( 36.2 x 25.2 )
|
mm(in.)
|
|
Stock Range
|
Paperboard
Min. 90
Corrugated Board <1.5
|
g/sq.m
mm
|
|
Heating
Capacity
|
6 or 10 heat zones
12 kw
|
|
|
Max.
Stamping Speed
|
4,000
|
sph
|
|
Max.
Die Cutting Speed
|
5,500
|
sph
|
|
Max.
Pressure
|
220
|
t
|
|
Foil Feed Devices
|
3 longitudinal
2 transversal
|
mm (in.)
|
|
Max. Diameter
of Foil Roll
|
180 ( 7 )
3" core
|
mm (in.)
|
|
Feeder Pile Height
|
1100 ( 43.3 )
|
in.
|
|
Delivery
Pile Height
|
1000 ( 39.3 )
|
in.
|
|
Capacity
of all motors
|
36
|
kw
|
|
Net
Weight
|
12,000
( 26,400 )
|
kg
(lbs)
|
|
Dimensions
|
4600x2610x2300
(15 x 8.5 x 7.5)
|
mm
(ft.)
|
